Two-person deployment for fast site turnover.
ZT-001 high-altitude cleaning drone
A complete aerial cleaning system for global operators.
ZENGTIAN Aviation supplies the ZT-001 platform with aircraft, controller, autonomous ground station, RTK, gimbal camera, high-pressure cleaning equipment, batteries, chargers and field-ready spare parts.
20 kg+
Max payload
40 min+
Empty flight time
IP56
Dust and water resistance
Factory-direct package: aircraft, pressure system, hose, controller, training and spare parts.
Waypoint route planning for repeatable cleaning paths.
Dual-band smart controller for long-range operations.
Explosion-proof hose matched to high-rise jobs.
Built for real operators
Eight core modules create one complete working ecosystem.
ZT-001 Aircraft

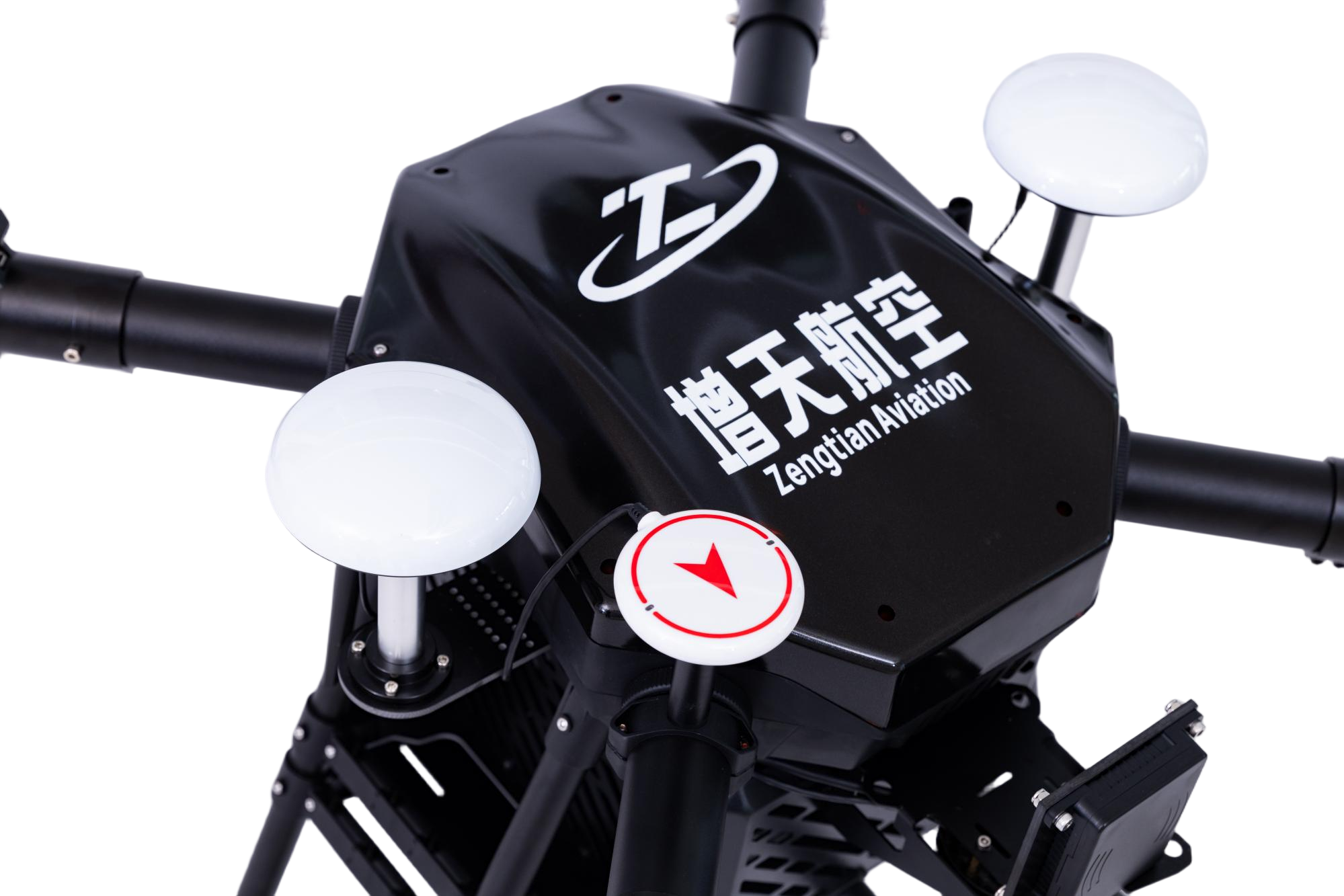

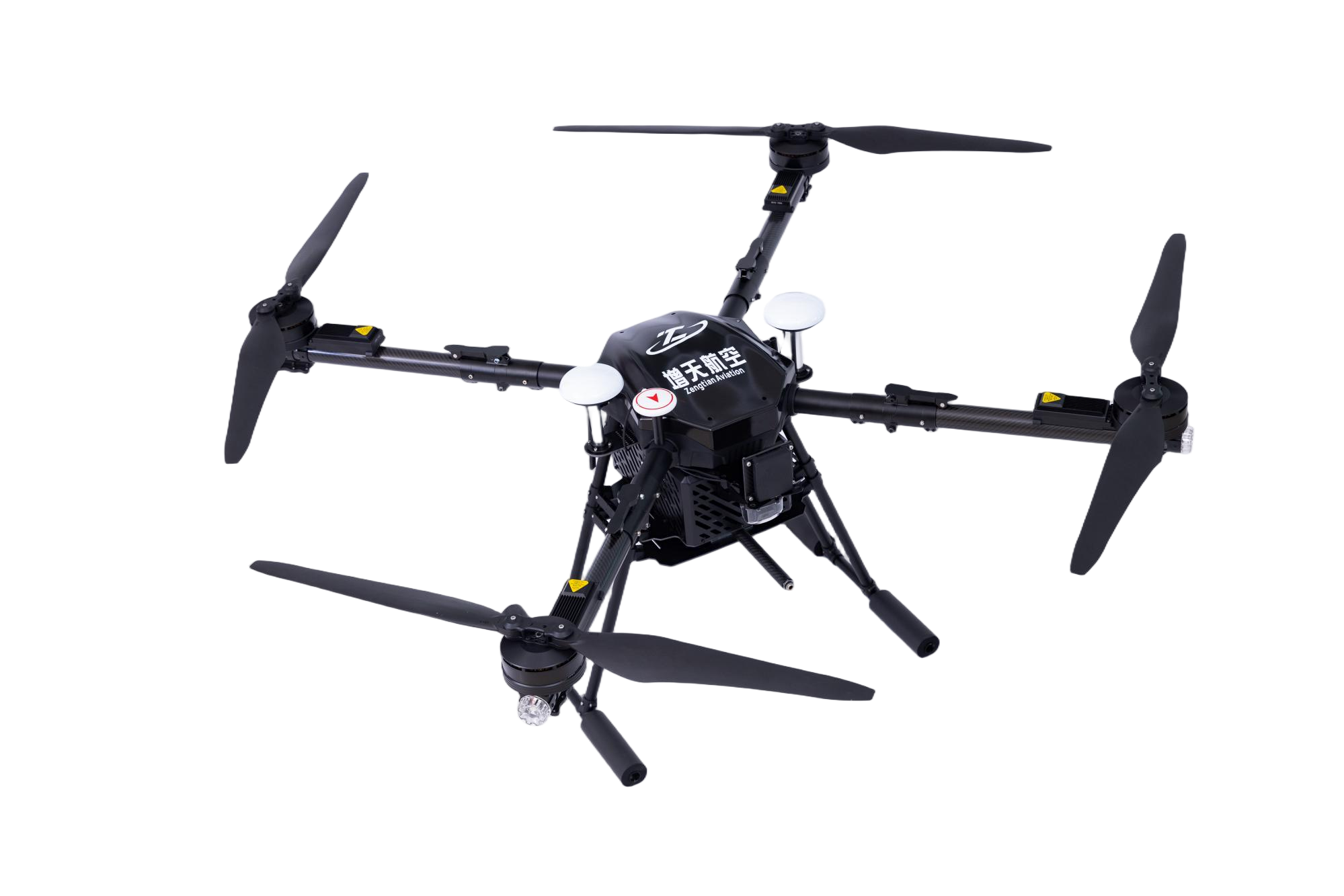

Carbon-fiber quad-rotor platform with 1380 mm motor wheelbase, foldable structure and over 20 kg payload capacity.
Control & Positioning
Integrated smart controller, autonomous ground station software, GPS/BeiDou/GLONASS and optional RTK centimeter positioning.
Cleaning & Power
High-pressure pump, 100 m hose, spray boom accessories, LiHV solid-state batteries and 4-channel intelligent charging.
Why operators switch
Make exterior cleaning safer, faster to deploy and easier to maintain.
Reduce work at height, shorten site preparation, standardize recurring cleaning routes and keep essential replacement parts available for long-term operation.
Build my distributor packageGround-based safety
Keep operators away from ropes, suspended platforms and fragile roof edges.
Rapid site setup
Deploy quickly where lifts, scaffolding and rope access slow the job down.
Repeatable routes
Use waypoint planning and real-time monitoring for consistent commercial work.
Parts revenue
Support long-term fleets with nozzles, hoses, batteries, chargers and maintenance kits.
Product parameters from ZENGTIAN
ZT-001 technical specifications for procurement review.
| Aircraft model | ZT-001 high-altitude cleaning drone |
|---|---|
| Frame material | Carbon fiber |
| Motor wheelbase | 1380 mm |
| Dimensions | 1480 x 1480 x 550 mm unfolded; 500 x 500 x 550 mm folded |
| Deployment | Within 1 minute by 2 operators |
| Payload | 20 kg+ maximum effective payload |
| Flight time | 40 min+ empty standard flight time |
| Wind resistance | Level 7 wind operation capability |
| Environment | -40 C to +70 C, IP56, altitude 4000 m+ |
| Navigation | GPS / BeiDou / GLONASS, optional RTK vertical and horizontal accuracy ±5 cm |
| Autonomous work | Up to 600 planned waypoints, route flight, one-key takeoff and landing, return-to-home protection |
| Cleaning equipment | 3500 W high-pressure pump, 100 m explosion-proof hose, 3-5 m spray distance |
| Battery | LiHV 14S solid-state high-rate battery, 61 V, 35000 mAh, 10C |
| Charger | 110-240 V AC input, 3000 W x 2, 6000 W total, 4 channels |
Field operation footage
See the complete cleaning workflow in action.
Watch the ZT-001 take off, approach the work surface and deliver controlled cleaning coverage while the ground team manages water pressure, hose movement and site safety.
- Controlled takeoff and surface approach
- Stable water delivery and cleaning coverage
- Coordinated aircraft and ground-system operation
Complete systems
Cleaning drone packages built around the ZT-001 ecosystem.

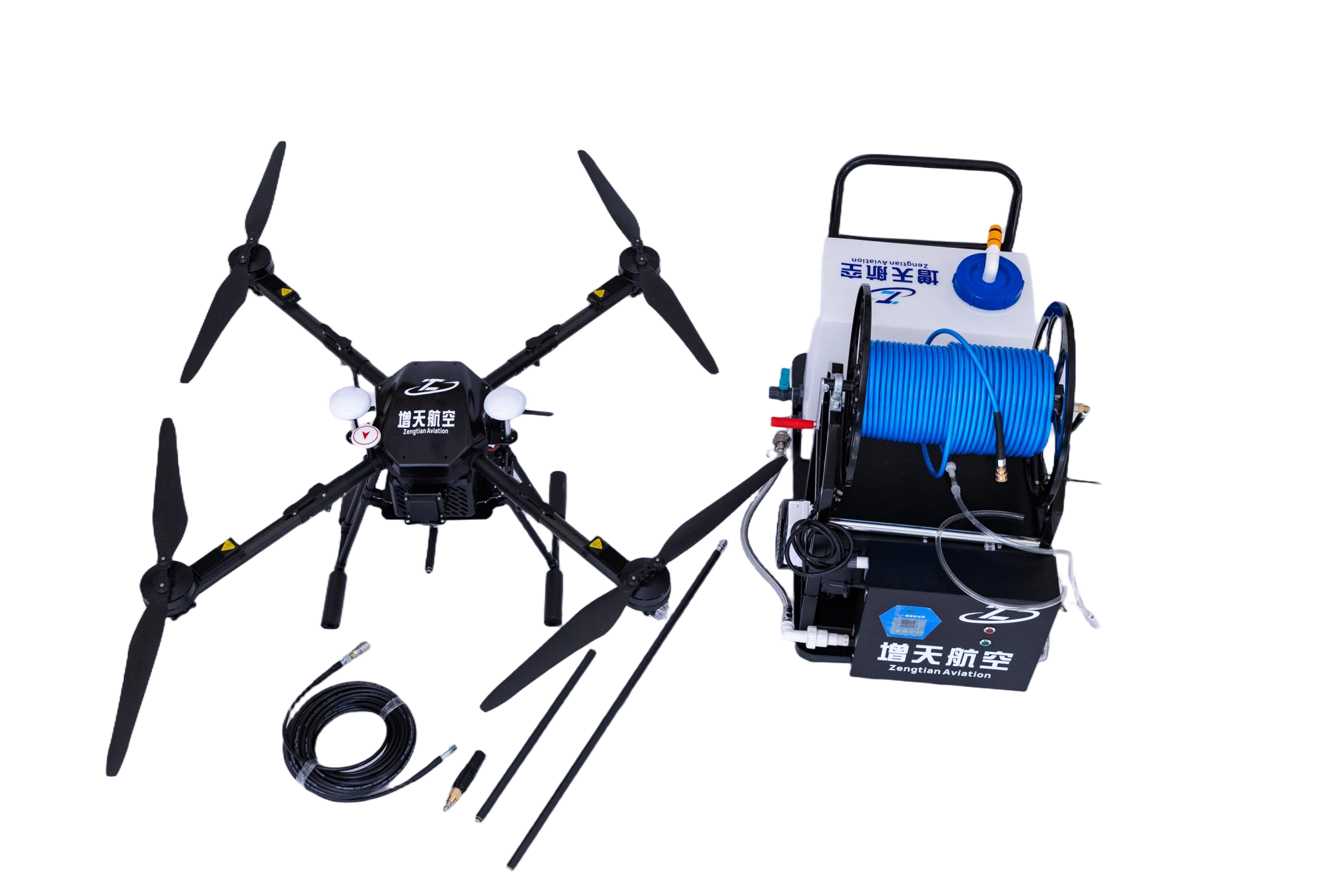

ZT-001 Cleaning Drone Kit
Aircraft body, smart controller, autonomous ground station, gimbal camera, RTK option, cleaning payload and starter spare parts.
- Aircraft
- Carbon-fiber quad-rotor, IP56, 20 kg+ payload
- Buyer
- Cleaning contractors, rental fleets and distributors
High-pressure Cleaning Set

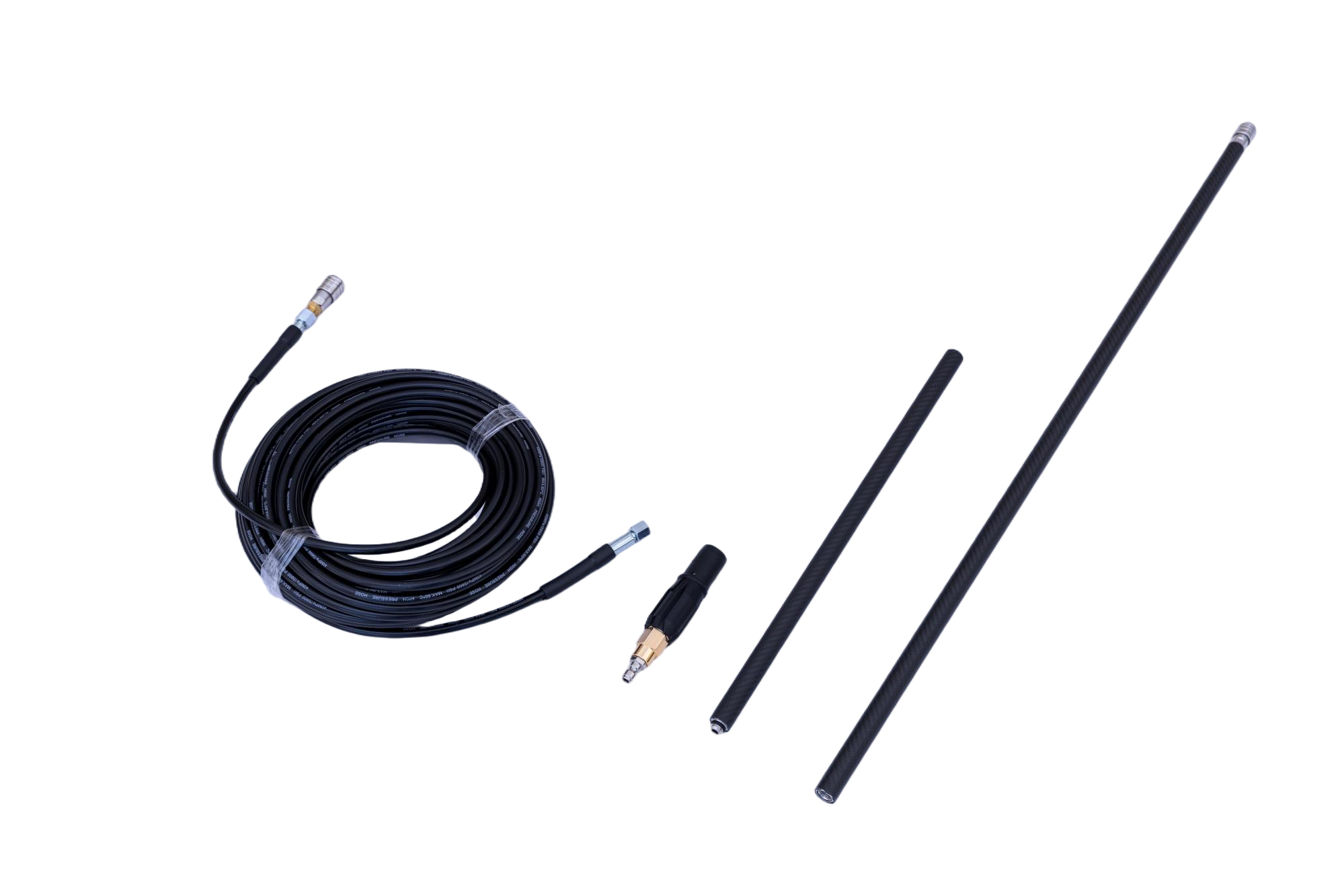

3500 W pump, 100 m explosion-proof hose, 3-5 m spray distance and compatible spray boom accessories.
- Use
- Glass facades, solar panels and exterior walls
- Option
- Nozzle, hose and rod configurations for different sites
Smart Controller & Software

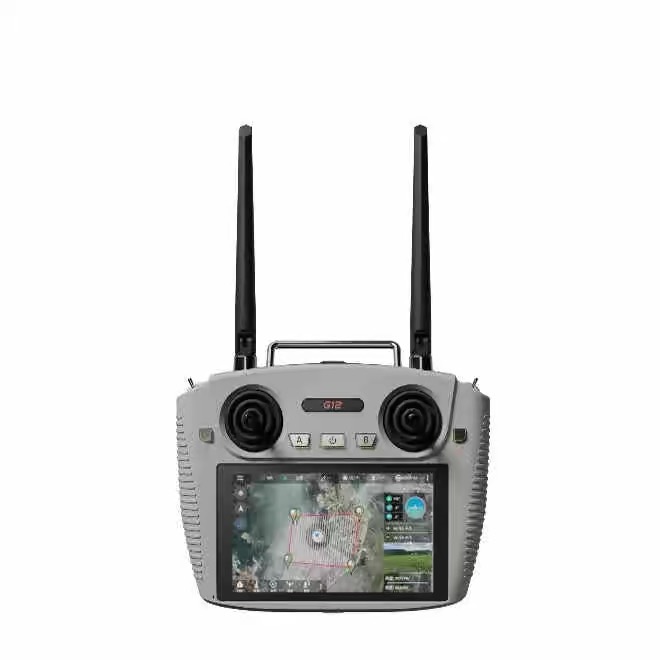

5.5-inch 1000-nit HD screen, Android 13, 2.4/5.8 GHz dual-band communication and up to 20 km link distance.
- Software
- Waypoint planning, multi-map view, real-time monitoring
- Safety
- Low-voltage return, signal-loss return and electronic fence
Parts & accessories
Spare parts and accessories for long-term fleet operation.
Maintain reliable daily operations with compatible spray booms, high-pressure hoses, nozzles, controllers, gimbal cameras, batteries, chargers and maintenance components.
Keep critical components ready when service cannot wait.
Choose consumables, maintenance parts and upgrade accessories for your fleet.
3500 W pressure pump
High-pressure spray booms
Nozzle kits
100 m explosion-proof hose
LiHV 14S batteries
6000 W smart charger
5.5-inch smart controller
3-axis gimbal camera
Seals and quick connectors
Maintenance tool kits
Applications
Designed for high-value jobs where scaffolding is slow, costly or risky.
Commercial buildings
High-rise Facades
Glass, stone, aluminum panel and exterior wall washing for commercial buildings and hotels.
Quote this use case
Energy assets
Solar & Rooftop Sites
Routine surface cleaning for energy yield improvement and safer roof maintenance workflows.
Quote this use case
Repeat operations
Autonomous Missions
Waypoint planning, real-time monitoring and precise hovering for repeated commercial cleaning routes.
Quote this use caseSolution scenarios
Cleaning system configurations for common commercial projects.
Facade contractor package
High-rise exterior cleaning for hotels, office towers and mixed-use projects.
Designed for operators who need faster deployment than lifts or rope access on repeated facade maintenance contracts.
- Target site
- Glass, aluminum panel and stone facade projects
- Recommended package
- ZT-001 aircraft, high-pressure system, 100 m hose, spray boom and starter spare parts
- Operational value
- Two-person deployment, reduced height risk exposure and easier recurring service scheduling
Solar O&M scenario
Solar panel washing for rooftop and distributed energy assets.
Suitable for service teams that want a controlled cleaning workflow for elevated arrays without repeated roof-edge exposure.
- Suitable for
- PV maintenance contractors and regional distributors
- Working focus
- Surface coverage, route repeatability and water-delivery consistency
- Support parts
- Nozzle kits, hoses, seals, batteries and maintenance consumables
Distributor launch case
Starter fleet package for local distributors building a cleaning drone line.
Built around one flagship aircraft package plus ground systems and fast-moving parts that support repeat orders after first delivery.
- Core bundle
- Aircraft, controller, training guidance, pressure system and stocking list
- Fleet support
- Complete system supply with recurring parts and after-sales assistance
- Supply advantage
- Factory-direct configuration and straightforward distributor replenishment
Verified field case · Project details withheld
Commercial Aluminum Panel Cleaning Project
Six on-site clips document the complete workflow, from ground-system preparation to controlled cleaning passes across a large aluminum-panel roof.
- Surface
- Aluminum roof panels
- Water supply
- Ground pressure system
- Operation
- Drone-assisted roof washing
01 · Ground preparation
Pressure system and hose setup
The crew checks the pump, hose reel, power supply and water delivery before takeoff.
02 · Wide cleaning pass
Controlled movement across the roof
The aircraft follows the roof profile while water is supplied continuously from the ground.
03 · Site overview
Aircraft position and hose routing
A high-angle view shows the working area, aircraft position and ground-team coordination.
04 · Coverage verification
Visible cleaning path across panels
The top-down angle makes the wet cleaning path and surface coverage easy to verify.
05 · Close cleaning pass
Stable hover and spray alignment
A closer view documents aircraft stability, spray direction and hose behavior during operation.
06 · Alternate field angle
Repeatable roof-cleaning movement
An additional field perspective shows consistent movement over the aluminum-panel surface.
ZENGTIAN Aerial Intelligence
Practical knowledge for cleaning contractors and drone distributors.
Buyer's guide
How to Choose a High-Rise Cleaning Drone in 2026
A procurement framework covering payload, positioning, pressure systems, safety and after-sales support.
Read the guide
System explained
How a High-Pressure Drone Cleaning System Works
Understand the aircraft, pump, hose, spray boom, controller and ground-team workflow.
Explore the system
Parts & maintenance
Ground Systems, Spray Booms and Spare Parts Guide
Plan a reliable parts inventory for commercial cleaning fleets and distributor networks.
View the parts guideBuyer FAQ
Key questions overseas buyers usually ask before requesting pricing.
These answers are written for distributors, contractors and facility-service buyers comparing a full cleaning drone system instead of a single aircraft.
Need a market-specific answer?
We can package recommendations by facade type, building height, water source and distributor model.
What is included in a complete cleaning drone package?
A typical package can include the aircraft, controller, autonomous ground station software, optional RTK, gimbal camera, high-pressure ground system, hose, spray boom, batteries, charger, training guidance and starter spare parts.
How many operators are required for deployment?
The ZT-001 configuration is designed for two operators and can be deployed within about one minute under standard working conditions.
Can you support overseas distributors with parts and training?
Yes. The sales model is built around distributor support with technical guidance, recommended stocking lists, spare-parts planning and repeat accessory supply after the first system sale.
What surfaces can the cleaning drone system handle?
Typical applications include glass facades, stone and aluminum exteriors, solar panel surfaces and selected industrial exterior cleaning tasks, depending on site risk assessment and final configuration.
What power and hose configuration is available?
The standard configuration includes a 3500 W high-pressure pump, a 100 m explosion-proof hose and a spray distance of about 3-5 m. Final nozzle and connector choices can be matched to the target project.
How long is the usual delivery cycle?
The standard delivery cycle is around 10 working days after order confirmation, depending on final package scope and parts selection.
Overseas support
Built for buyers who need confidence after delivery.
01Pre-sale configuration by height, surface type and water source
02Equipment operation training and professional technical guidance
03Spare parts list for distributor stocking and maintenance planning
04Standard delivery cycle around 10 working days after order confirmation
Start a quote
Tell us your market, building height and required package.
Share your project details and our team will recommend a suitable aircraft, ground system and spare-parts package. Your inquiry will be sent directly to our sales team for follow-up.
